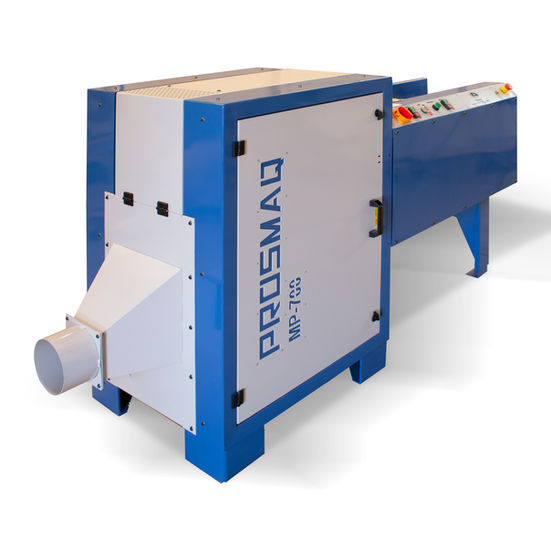

FOAM AND FABRIC CRUSHER MP-255

MP-700 | MP-710 | MP-720 | MP-730

100% Nacional.png

The entire Line of Foam and Fabric Crushers has a robust structure (manufactured in carbon steel) and has an elongated feeding funnel to prevent any contact between the operator and the grinding rotor when filling the machine, thus preventing accidents from job.

All Crushers come with a Conveyor Exhaust attached to the machine itself to transport the flakes to a warehouse or silo. The format of the Conveyor Exhaust is in a "snail" which guarantees greater propulsion of the foam flakes.

The MP-260 and MP-270 models have an electrical panel with a Star-Delta key system that aims to reduce the energy currents that overload the electrical installation during the direct start of the motor.

ESPECIFICAÇÕES

MP-700

MP-710

MP-720

MP-730

Capacidade de processamento

180 kg/h

250 kg/h

350 kg/h

450 kg/h

Potência do Motor

5,0 cv

7,5 cv

10,0 cv

12,0 cv

Potência do motor redutor

1,0 cv

1,0 cv

1,5 cv

1,5 cv

Linha de Produção

Industrial

Industrial

Industrial

Industrial

Largura dos cilindros

300 mm

500 mm

700 mm

900 mm

Quantidade de cilindros

8 und.

8 und.

8 und.

8 und.

Bocal de saída da máquina

125 mm

150 mm

150 mm

200 mm

Altura total da máquina

1100 mm

1100 mm

1100 mm

1100 mm

Largura total da máquina

600 mm

800 mm

1100 mm

1250 mm

Comprimento total da máquina

2200 mm

2200 mm

2670 mm

2670 mm

Sensor Magnético para metais

AC

AC

AC

AC

Sistema de abastecimento por esteira

AC

AC

AC

AC

Acionamento por Painel Elétrico

AC

AC

AC

AC
